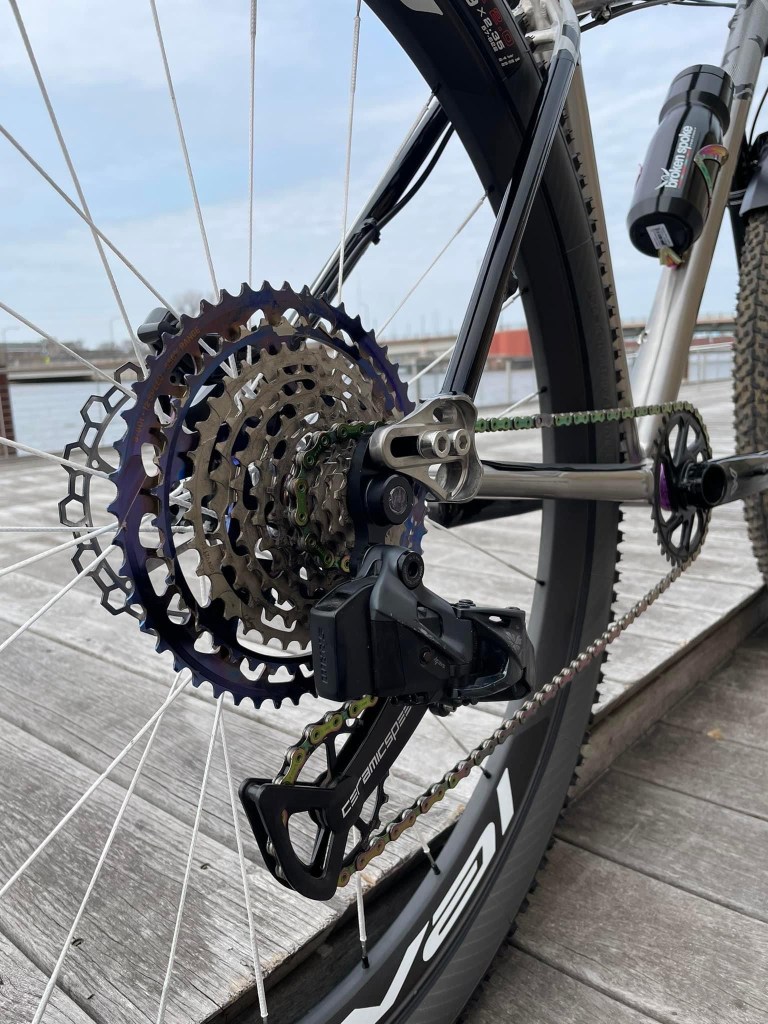

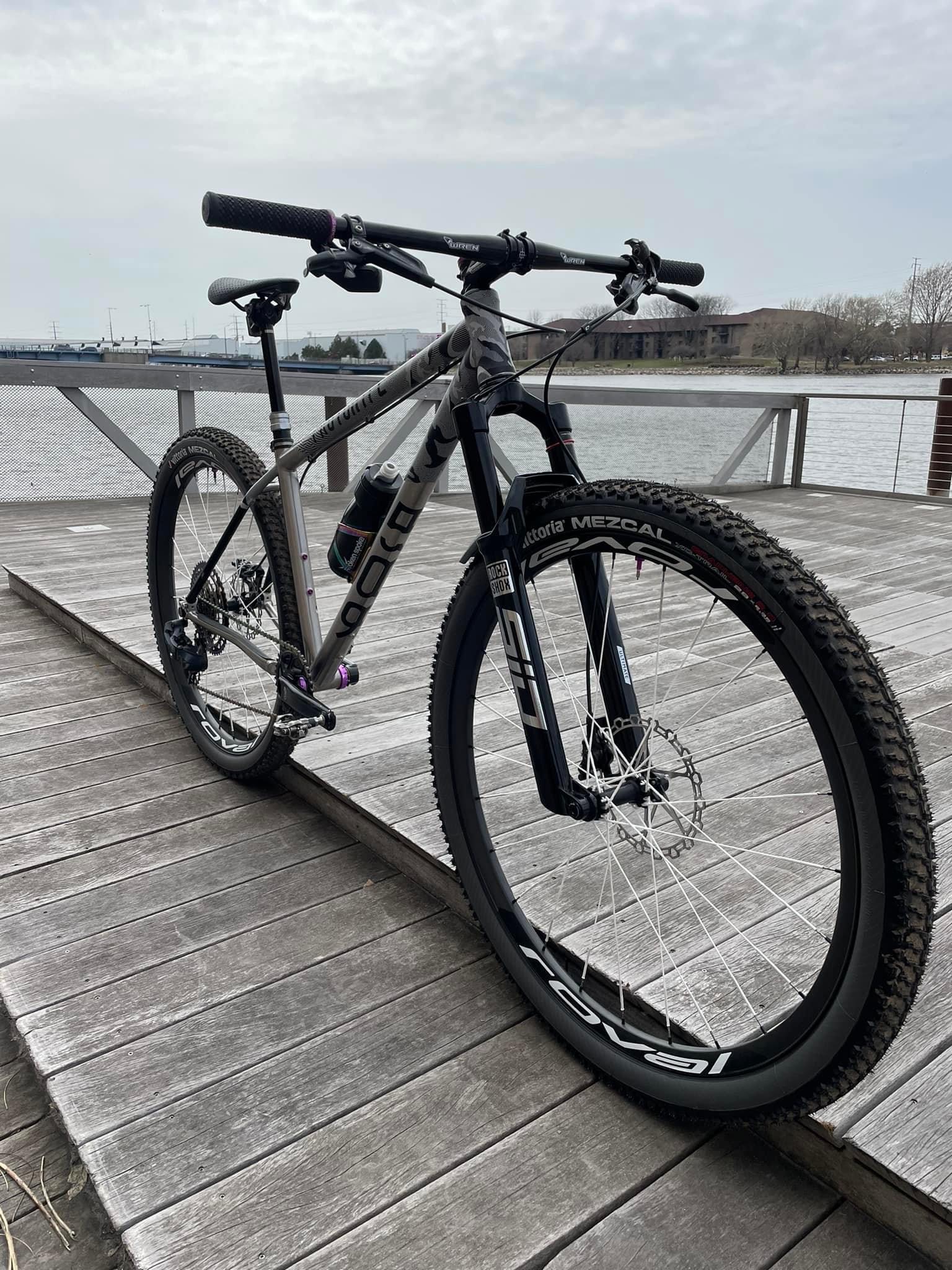

The Up An’ Atom is ready to get things done from casual days with your friends, long training days or come race day! This is our new 29″ titanium hardtail frame. This all around trail frame is based around a 130mm fork and can clear up to a 29×2.6″ tire. The sliding dropouts on the frame allow you to run geared or single speed along with playing with your chain stay length based on the type or riding your prefer. Keep it short for a bike that’s more playful and easier to manual or go long to clear a bigger tire and to keep things more stable.
Tubeset – T3A/2.5V Butted Titanium
Fork – 120 – 140mm fork w/ 44 offset (designed around a 130mm fork)
Headset – 44mm Headtube
Axle Spacing – 15×110 Front / 12x148mm Rear
Bottom Bracket – Threaded English 73mm
Seatpost Diameter – 30.9mm / 34.9mm seatpost clamp
Water Bottle Mounts – Three – 1 on seat tube and 2 on downtube (top tube bag mounts as well!)
Tire Clearance – 29×2.3″ slammed forward at 425mm
Chainring Clearance – 34T with boost chain line
Sizing – Small, Medium, Large
Pricing – $2,250 for frameset, which includes Frame and Thru Axle.
